3D Printing for Appliance Repair: On-Demand, Affordable Parts

Anyone who has waited weeks for a tiny plastic clip to arrive knows the pain of appliance downtime. 3D printing flips that script. Instead of hunting for discontinued or backordered components, homeowners, makers, and technicians can design and fabricate small replacement parts on demand—often in a single afternoon. The result is faster fixes, lower costs for many non-critical parts, and a more sustainable approach to keeping reliable machines in service.

Quick note: Appliance rescue does not sell parts or perform repairs. They publish expert guides, practical tips, and troubleshooting advice to help you diagnose issues and decide your next step confidently. If you have questions about the information in this article, feel free to Contact us.

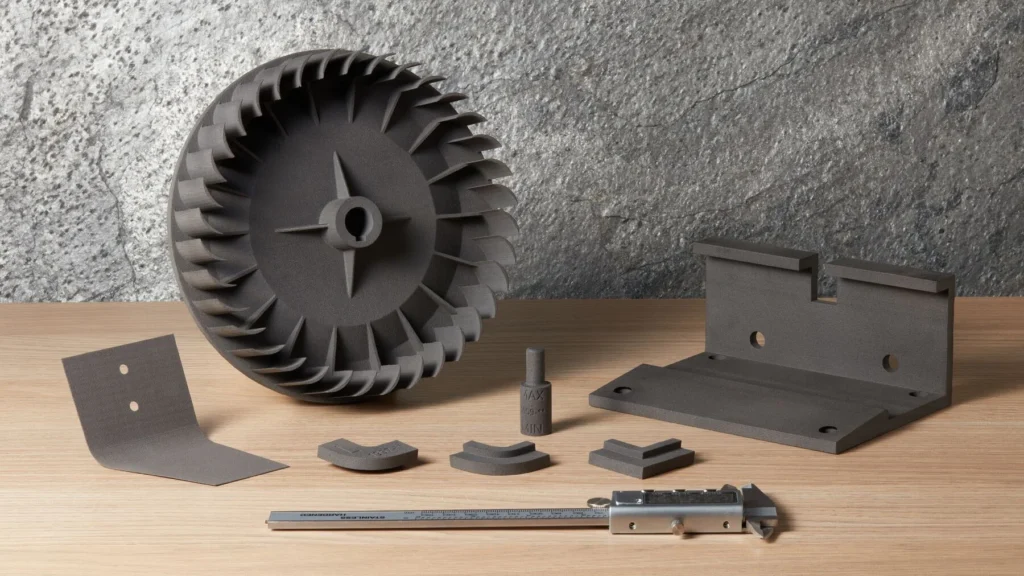

What Makes 3D Printing a Game-Changer for Repairs?

On-demand availability: If a part is discontinued, custom, or hard to source, you can model and print it locally.
Customization: You can tweak dimensions, add reinforcement ribs, or improve ergonomics (a sturdier oven knob, a deeper fridge bin tab).
Rapid iteration: If the first print doesn’t fit perfectly, you can revise the model and try again the same day.
Waste reduction: Producing a single part uses far fewer resources than manufacturing, packaging, and shipping a full OEM batch.

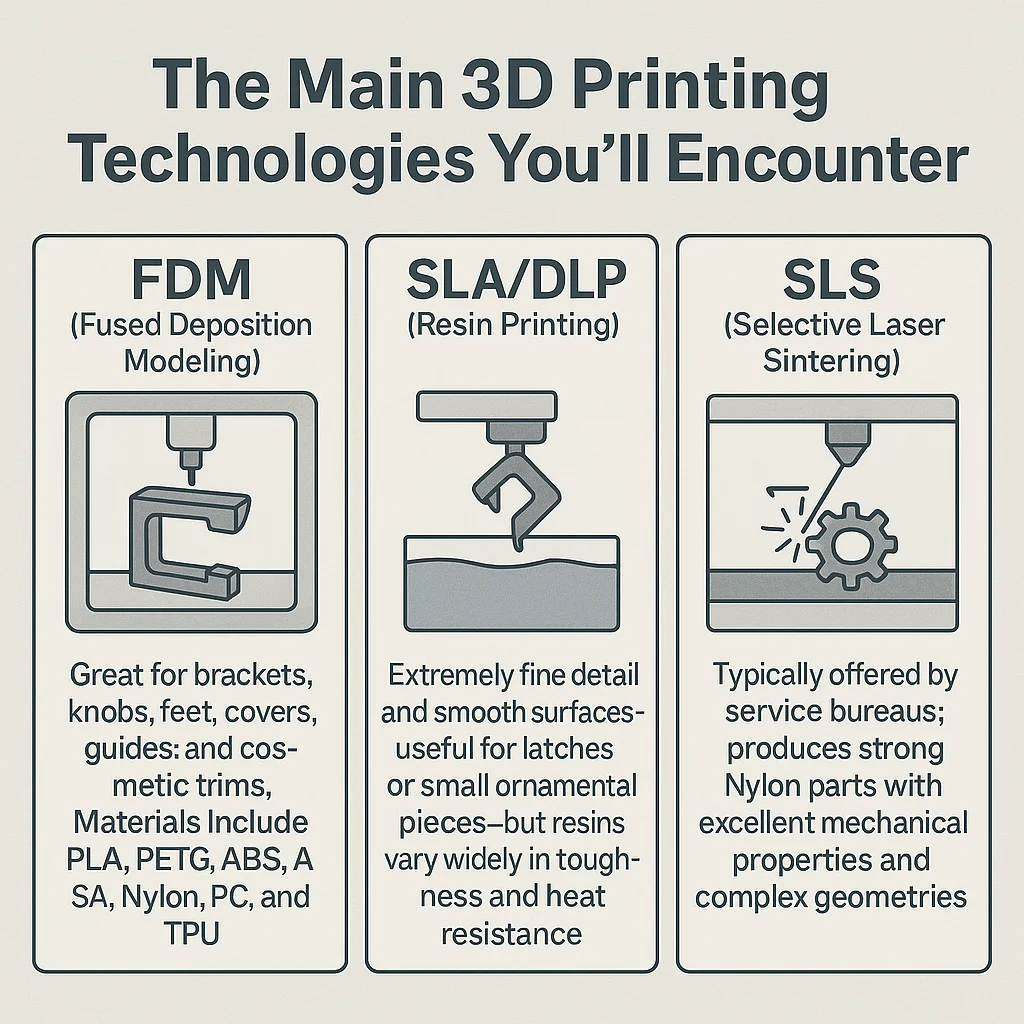

The Main 3D Printing Technologies You’ll Encounter

FDM (Fused Deposition Modeling): The most common consumer method. Great for brackets, knobs, feet, covers, guides, and cosmetic trims. Materials include PLA, PETG, ABS, ASA, Nylon, PC, and TPU.
SLA/DLP (Resin Printing): Extremely fine detail and smooth surfaces—useful for latches or small ornamental pieces—but resins vary widely in toughness and heat resistance.
SLS (Selective Laser Sintering): Typically offered by service bureaus; produces strong Nylon parts with excellent mechanical properties and complex geometries.

For most household replacements, FDM with PETG, ABS/ASA, or Nylon is the go-to due to cost and durability.

Good Candidates vs. Risky Parts

Often Good Candidates

Control knobs, dials, and button caps
Door catches, hinges, striker plates, and latches for light to moderate loads
Shelving brackets, bin tabs, drawer slides, and trim clips
Feet, spacers, cable guides, and hose clamps (non-pressurized)
Vents and ducts are inserted away from direct heating elements

Use Caution or Avoid

High-heat parts near burners, broilers, or heating coils (e.g., oven door inner components, bake-element mounts)
Pressurized or hot water components (pump housings, boiler fittings)
Electrical safety parts (enclosures requiring specific flame ratings)
Food-contact surfaces without appropriate materials and post-processing
Structural, load-bearing pieces critical to safety (e.g., counterweights)

When in doubt, choose an OEM part or a certified aftermarket replacement.

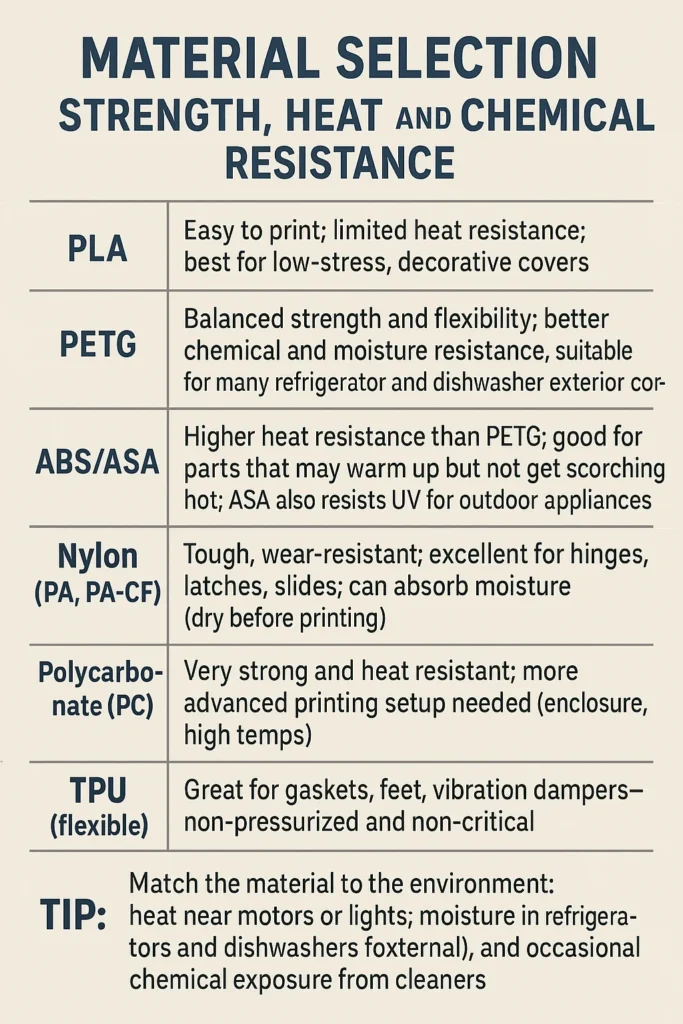

Material Selection: Strength, Heat, and Chemical Resistance

PLA: Easy to print; limited heat resistance; best for low-stress, decorative covers.
PETG: Balanced strength and flexibility; better chemical and moisture resistance; suitable for many refrigerator and dishwasher exterior components.
ABS/ASA: Higher heat resistance than PETG; good for parts that may warm up but not get scorching hot; ASA also resists UV for outdoor appliances.
Nylon (PA, PA-CF): Tough, wear-resistant; excellent for hinges, latches, slides; can absorb moisture (dry before printing).
Polycarbonate (PC): Very strong and heat resistant; more advanced printing setup needed (enclosure, high temps).
TPU (flexible): Great for gaskets, feet, vibration dampers—non-pressurized and non-critical.

Tip: Match the material to the environment: heat near motors or lights, moisture in refrigerators and dishwashers (external), and occasional chemical exposure from cleaners.

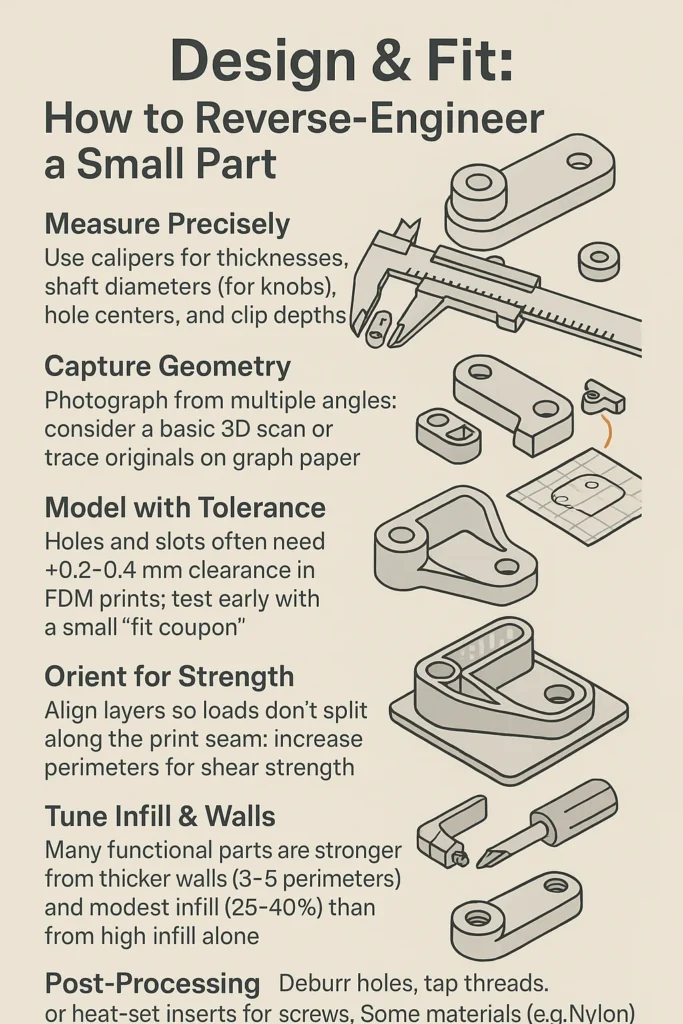

Design & Fit: How to Reverse-Engineer a Small Part

Measure Precisely: Use calipers for thicknesses, shaft diameters (for knobs), hole centers, and clip depths.
Capture Geometry: Photograph from multiple angles; consider a basic 3D scan or trace originals on graph paper.
Model with Tolerance: Holes and slots often need +0.2–0.4 mm clearance in FDM prints; test early with a small “fit coupon.”
Reinforce Smartly: Add fillets, ribs, and gussets where parts failed previously.
Orient for Strength: Align layers so loads don’t split along the print seam; increase perimeters for shear strength.
Tune Infill & Walls: Many functional parts are stronger from thicker walls (3–5 perimeters) and modest infill (25–40%) than from high infill alone.
Post-Processing: Deburr holes, tap threads, or heat-set inserts for screws. Some materials (e.g., Nylon) benefit from annealing to increase stability.

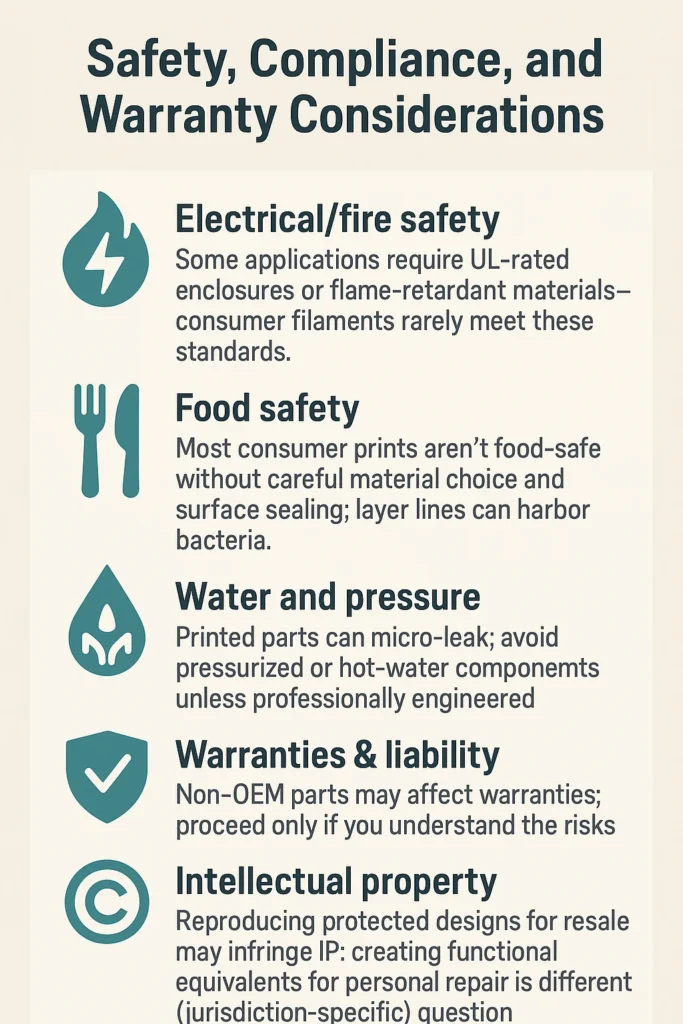

Safety, Compliance, and Warranty Considerations

Electrical/fire safety: Some applications require UL-rated enclosures or flame-retardant materials—consumer filaments rarely meet these standards.
Food safety: Most consumer prints aren’t food-safe without careful material choice and surface sealing; layer lines can harbor bacteria.
Water and pressure: Printed parts can micro-leak; avoid pressurized or hot-water components unless professionally engineered.
Warranties & liability: Non-OEM parts may affect warranties; proceed only if you understand the risks.
Intellectual property: Reproducing protected designs for resale may infringe IP; creating functional equivalents for personal repair is a different (jurisdiction-specific) question.

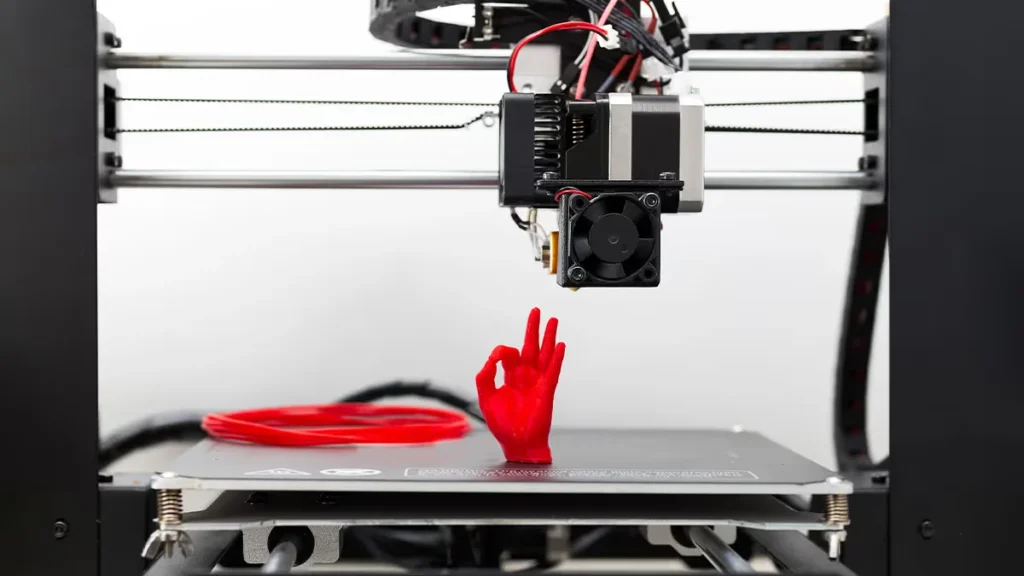

Cost, Speed, and Where to Print

DIY printing: A typical small bracket or knob may cost a few dollars in filament and 30–180 minutes to print, after design time.
Local makerspaces & libraries: Many offer printers and training—even light design help.
Service bureaus: Upload a model and receive a professionally printed part (SLS Nylon is common) within days; more expensive but robust.

If you’re new to CAD, consider starting with simple geometries, measuring accurately, and iterating quickly.

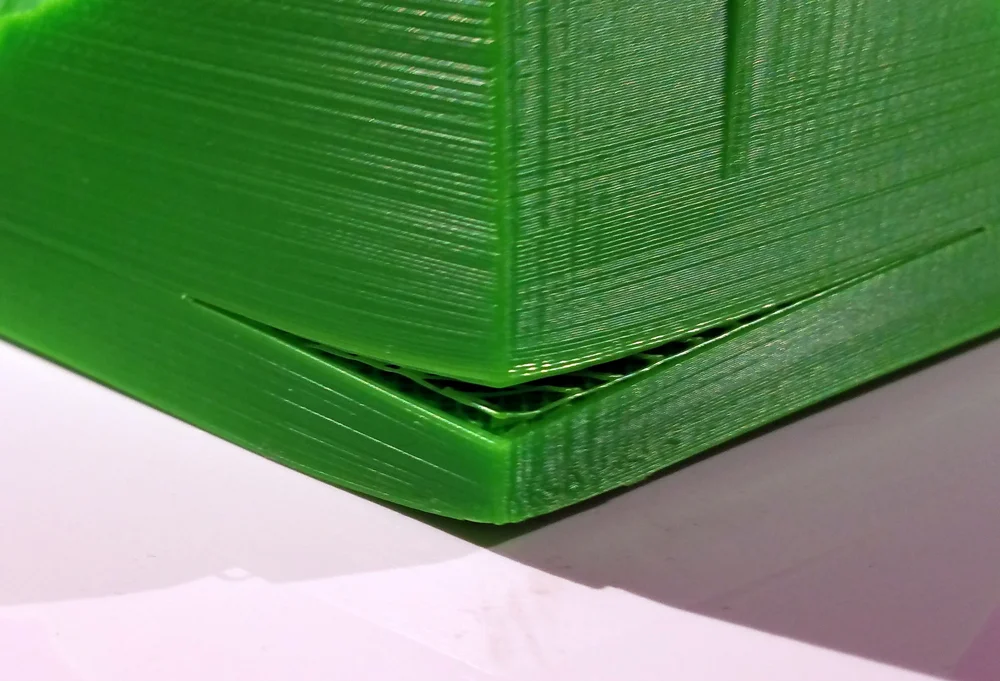

Common Pitfalls (and How to Dodge Them)

Warping & shrinkage: Use an enclosure for ABS/PC; add brim/raft; tune bed adhesion.
Weak clips and tabs: Increase wall count; print with Nylon or PETG; round interior corners.
Loose press-fits: Adjust tolerances; lightly sand; use heat to soften a press-fit very carefully.
Brittleness in cold: PLA can snap in refrigerators—favor PETG or Nylon.
UV exposure: Sunlight degrades PLA and ABS; choose ASA for outdoor/garage applications.

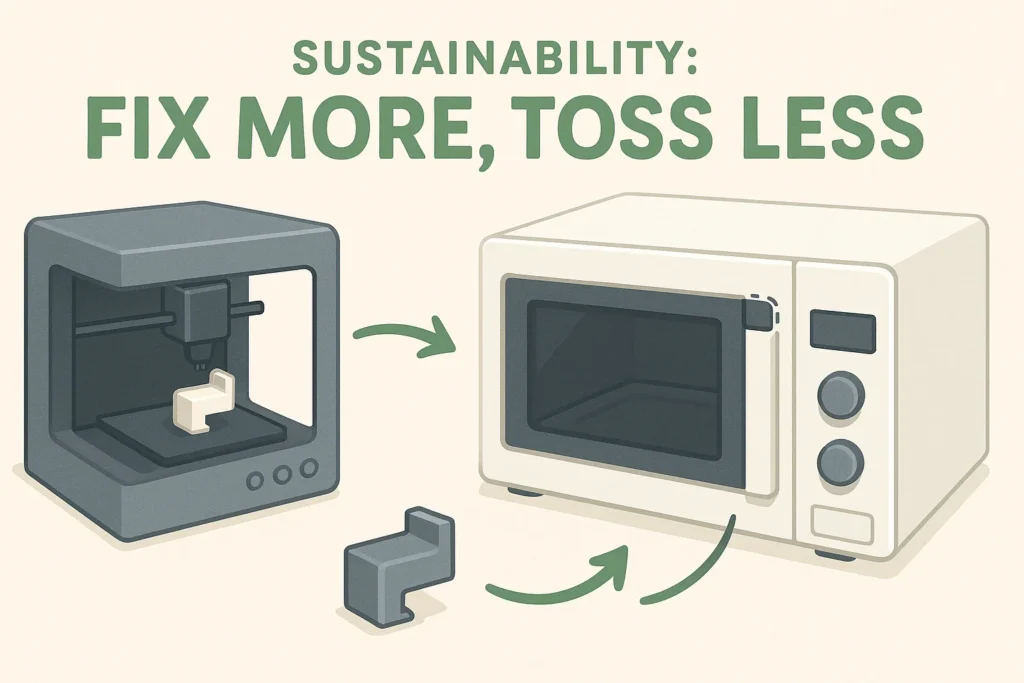

Sustainability: Fix More, Toss Less

3D printing lets you salvage appliances that still have years of service left. Replacing a ten-cent tab no longer requires shipping a whole assembly or discarding an otherwise functional unit. Over the lifetime of a household, that adds up to fewer landfilled machines and less embodied carbon wasted on logistics.

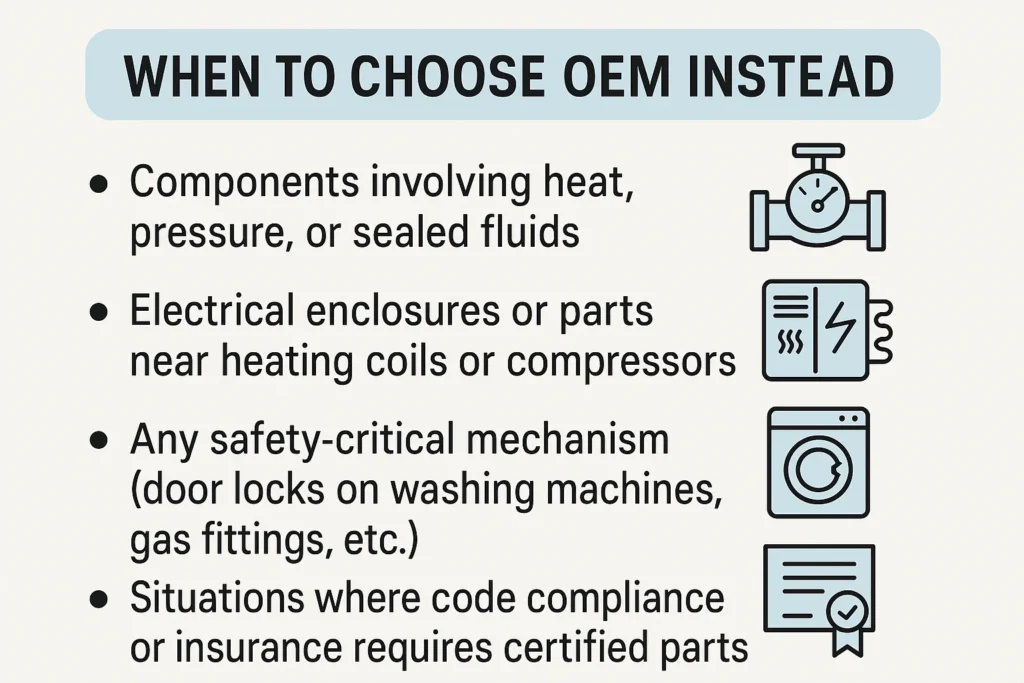

When to Choose OEM Instead

Components involving heat, pressure, or sealed fluids
Electrical enclosures or parts near heating coils or compressors
Any safety-critical mechanism (door locks on washing machines, gas fittings, etc.)
Situations where code compliance or insurance requires certified parts

Use 3D printing to bridge the gaps—cosmetic trims, light-duty mechanics, fitment adapters—while leaving high-risk items to certified components.

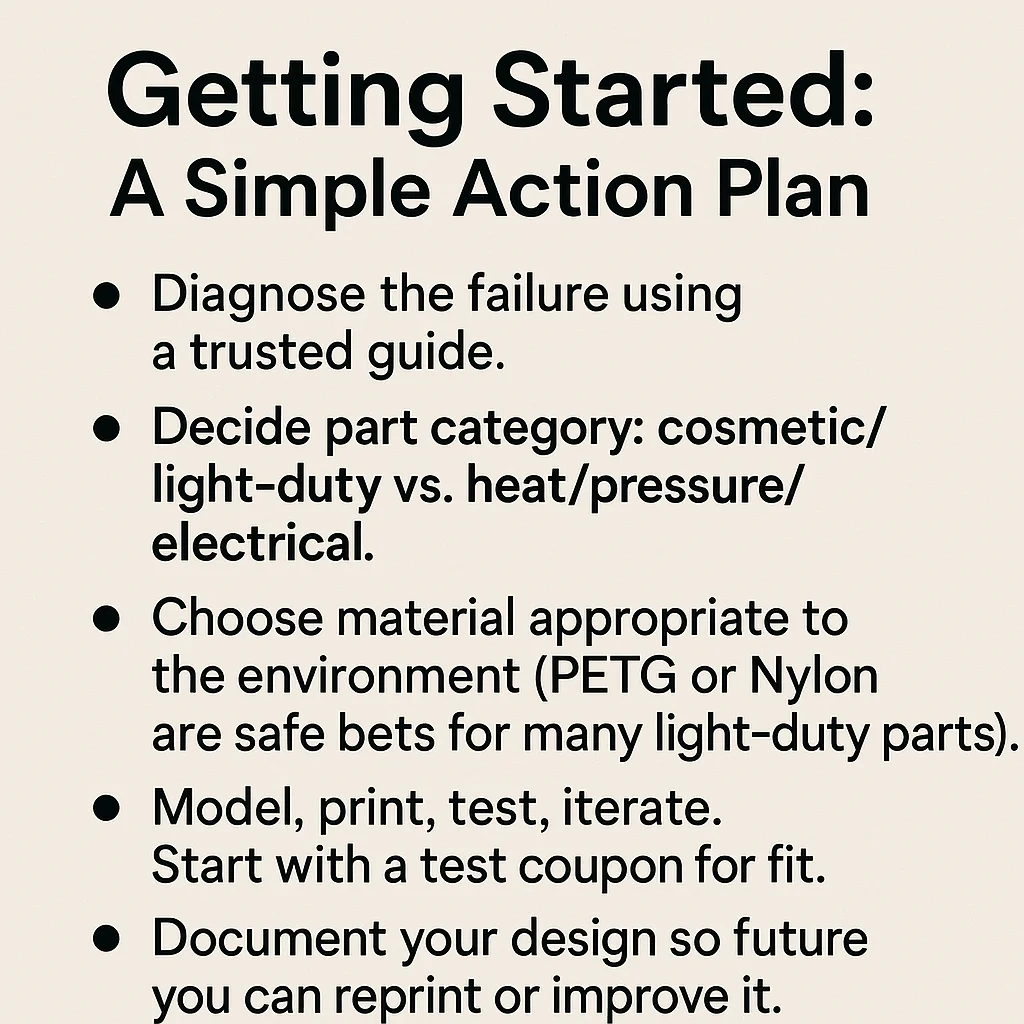

Getting Started: A Simple Action Plan

Diagnose the failure using a trusted guide.
Decide part category: cosmetic/light-duty vs. heat/pressure/electrical.
Choose material appropriate to the environment (PETG or Nylon are safe bets for many light-duty parts).
Model, print, test, iterate. Start with a test coupon for fit.
Document your design so future you can reprint or improve it.

For detailed troubleshooting steps and practical print tips tailored to appliance contexts, visit Appliance Rescue. Remember, they don’t perform repairs or sell parts; the site focuses on Expert Guides, Appliance Tips, and Troubleshooting Advice to help you make informed decisions. If you need clarification about a technique or want to share feedback on this article, contact us.

The Bottom Line

3D printing isn’t a blanket replacement for certified parts, but it’s a powerful tool for fast, affordable, and sustainable fixes of light-duty, non-critical components. With the right material, careful measurements, and a willingness to iterate, you can bring aging appliances back to life and keep them running longer—without waiting weeks for a plastic tab. For practical, step-by-step guidance, explore the resources at Appliance Rescue and reach out via Contact us if you have questions about the information presented here.
